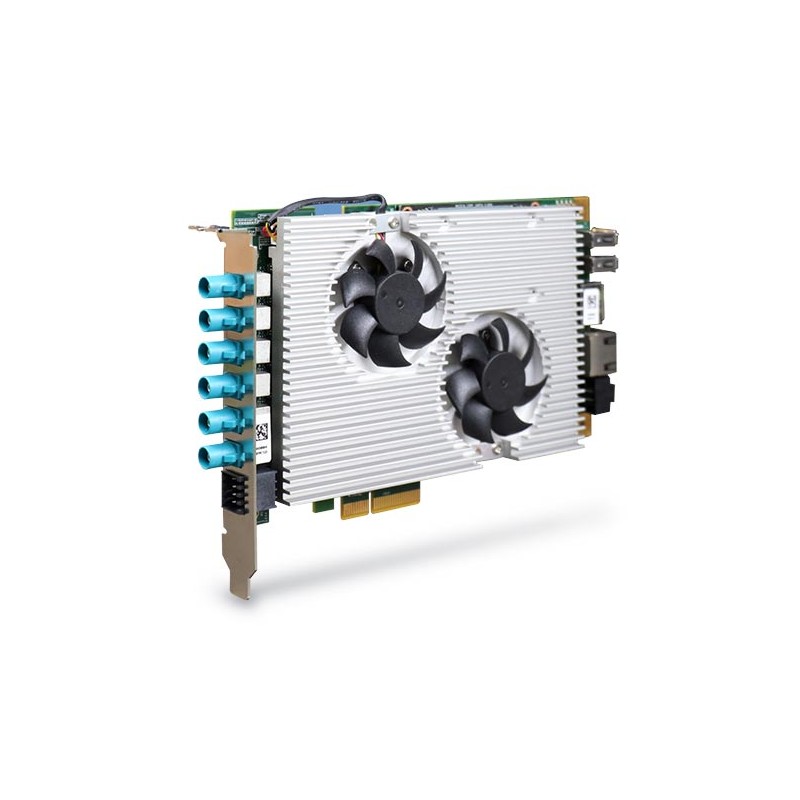

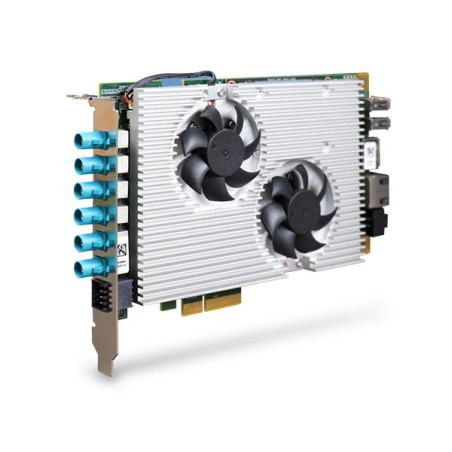

Carte d’acquisition GMSL2 Nvidia Jetson – PCIe-GL26
Dispose de 6 ports GMSL2 FAKRA Z pour caméras GMSL2 automobilesDestinataire :
* Champs requis
OU Annuler
System Core | |
Processor NVIDIA® | Jetson Xavier™ NX System-on-Module (SOM), comprising of NVIDIA® Volta GPU and Carmel CPU |
Memory | 8GB/ 16GB LPDDR4x (Xavier NX 8GB/ 16GB) @ 1600/ 1866 MHz (15W/ 20W TDP mode) |
eMMC | 16GB eMMC 5.1 on SOM |
Deployment I/O Interface | |
Bus Interface | x2, Gen3 PCI Express |
GMSL2 | 6x GMSL2 ports (3Gbps) FAKRA Z connectors |
CAN bus | 1x isolated CAN 2.0 port |
Serial Port | 1x RS-232 port |
Isolated DIO | 1x GPS PPS input |
Development I/O Interface | |
Ethernet port | 1x Gigabit Ethernet |
USB | 2x USB 2.0 ports 1x micro USB (OTG) |
Video Port | 1x DisplayPort, supporting 3840x2160 at 60Hz |
DC Input | 12V DC power input (for development only) |
Internal I/O Interface | |
M.2 NVMe | 1x M.2 2242 M key socket (PCIe Gen3 x1) for NVMe SSD |
Mechanical | |
Dimension | 167.7 mm (W) x 111 mm (H) |
Weight | 0.43kg |
Environmental | |
Operating Temperature | -25°C to 60°C with airflow (20W TDP mode) * |
Storage Temperature | -40°C ~85°C |
Humidity | 10%~90% , non-condensing |
EMC | CE Class A, according to EN 55032/55035 (pending) FCC Class A, according to FCC Part 15, Subpart B (pending) |
