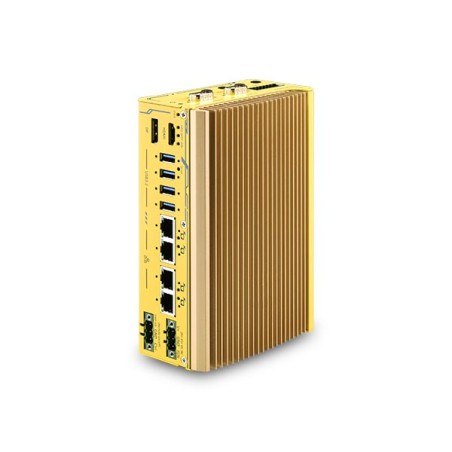

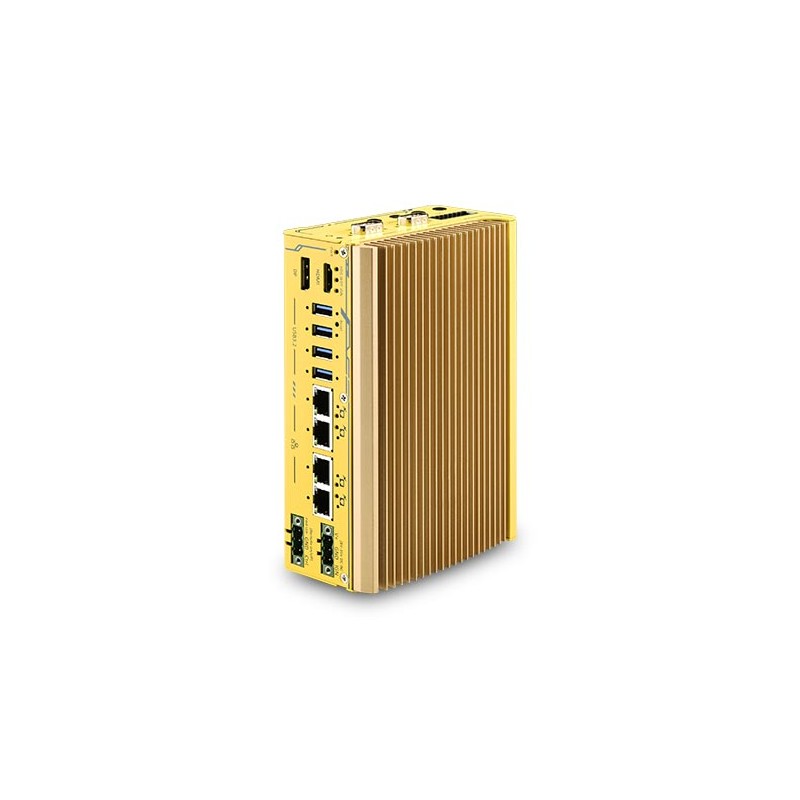

Référence : BBNEPOC-751VTC
Marque : Neousys
System Core | |
Processor | Intel® Alder Lake Core™ i3-N305 processor (8C/8T, 1.8/3.8 GHz, 15W TDP) |
Graphics | Integrated Intel® UHD Graphics with 32EUs |
Memory | Up to 16 GB DDR5-4800 SDRAM (one SODIMM socket) |
TPM | Supports TPM 2.0 |
Panel I/O Interface | |
Ethernet | 4x Gb Ethernet ports by Intel® I350-AM4 |
POE | 4x IEEE 802.3at Gigabit PoE+ ports via RJ45 connector |
USB | 4x USB 3.2 Gen2 ports with screw-lock |
CAN Bus | 2x isolated CAN 2.0 port, supporting SocketCAN in Linux |
Isolated DIO | 4x isolated DI and 4x isolated DO (on MB) 4x isolated DI and 4x isolated DO (on MezIO) |
Video Port | 1x DP++, supporting 4096 x 2160 @ 60Hz 1x HDMI1.4b, supporting 3840 x 2160 @ 30Hz |
Serial Port | 1x software-programmable RS-232/422/485 ports (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 port (COM2) |
Storage Interface | |
M.2 | 1x M.2 2280 M key socket for SATA SSD storage |
Expansion Bus | |
Mini PCIe | 2x full-size mPCIe for WiFi/ 4G/ 5G module with conduction-cooled heatsink |
Power Supply | |
DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input(IGN/GND/V+) |
Ignition Control | Built-in ignition power control |
Remote Ctrl.& LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
Mechanical | |
Dimension | 176mm (W) x 116mm (D) x 64mm (H) |
Weight | 1.7 kg |
Mounting | Horizontal-type wall-mount (Standard) Vertical-type wall-mount (Optional) |
Environmental | |
Operating Temperature | -40°C ~ 70°C |
Storage Temperature | -40°C ~85°C |
Humidity | 10%~90% , non-condensing |
Vibration | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
Shock | EN 50155:2017/ IEC 61373, Category I, Class B - Body mounted |
EMC | E-Mark, EN 50121 (EN 50155 EMC) CE/FCC Class A, according to EN 55032 & EN 55035 |
