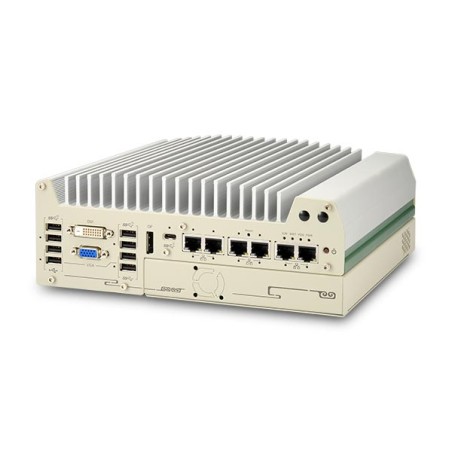

Référence : BBNENUVO-9000
Marque : Neousys
System Core | ||
Processor | Supporting Intel® 13th-Gen Core™ CPU (LGA1700 socket, 65W/ 35W TDP) - Intel® Core™ i9-13900E/ i9-13900TE - Intel® Core™ i7-13700E/ i7-13700TE - Intel® Core™ i5-13500E/ i5-13400E/ i5-13500TE - Intel® Core™ i3-13100E/ i3-13100TE |
Support Intel® 12th-Gen Core™ CPU(LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
Chipset | Intel® Q670E platform controller hub | |
Graphics | Integrated Intel® UHD Graphics 770 (32EU) | |
Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) | |
AMT | Supports Intel vPro/ AMT 16.0 | |
TPM | Supports dTPM 2.0 | |
I/O Interface | ||
Ethernet Port | 1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9002E/ P/ DE) with screw-lock 5x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9006E/ P/ DE) with screw-lock | |
PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget | |
USB | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen 1x1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports | |
Video Port (Integrated Graphics) |
1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution | |
Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) | |
Audio | 1x 3.5 mm jack for mic-in and speaker-out | |
Storage Interface | ||
SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 | |
M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD | |
Expansion Bus | ||
PCI/PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE) 1x PCI slot in Cassette (Nuvo-9002P/ 9006P) | |
Mini PCI Express | 1x full-size mini PCI Express socket | |
M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module | |
Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules | |
Power Supply | ||
DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input | |
Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output | |
Mechanical | ||
Dimension | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) | |
Weight | 4.4 kg (Nuvo-9000E/ P series) | |
Mounting | Wall-mount (standard) or DIN-rail mount (optional) | |
Environmental | ||
Operating Temperature | with 35W CPU -25°C ~ 70°C ** with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) | |
Storage Temperature | -40°C ~ 85°C | |
Humidity | 10%~90% , non-condensing | |
Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 | |
Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II | |
EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
